APPLICATIONS:
These shielded and PVC insulated cables are used as signal transmission cables in industrial applications. They can be easily used with their flexible construction in narrow applications like: electronic control systems of computer or audio systems or in communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. They are used for indoor applications. Screening protects the cable from the outer electrical effects.

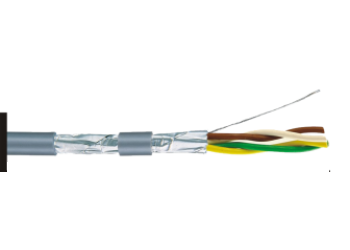

CONSTRUCTION:
| Conductor | Stranded Electrolytic Annealed Copper (IEC / EN 228 / VDE0295 / HD383 / BS 6360 Class5, 0.34 mm² : Column 2) |
| Insulation | PVC (EN 50290-2 / HD 21.1.S4 / VDE 0281-TI2), Color Code : DIN 47100 |
| Lay-up | Cores stranded in layers |
| Separator | Polyester tape |
| Drain Wire | Stranded Tinned Copper |
| Shielding | AL-PES tape |
| Outer Sheath | PVC (EN 50290-2 / HD 21.1.S4 / VDE 0281 TM1) Outer Sheath Color : RAL 7001 Grey |
| Reference Standards | VDE 0812 |
| Flame Test | IEC / EN 60332-1, VDE 0482-265-2-1 |
Technical & Electrical Properties (20°C)
| Operating Voltage | 0.14 mm²...0.25 mm² | 250 V |
| 0.34 mm²...1.50 mm² | 300 V / 500 V | |
| Test Voltage | 0.14 mm²...0.25 mm² | 1200 V |
| 0.34 mm²...1.00 mm² | 1500 V | |
| 1.50 mm².... | 2500 V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Inductance | Approx. 0.65 mH / Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C... + 70°C |
| Flexible | -5°C... + 70°C | |
| Minimum Bending Radius | Fixed | 7.5 x Cable Diameter |
| Flexible | 15 x Cable Diameter |
| Cross Section | Conductor Resistance (Max. Ω/Km) | Capacitance (Core/Core nF/Km) | Capacitance (Core/Screen nF/Km) |
|---|---|---|---|
| 0.14 mm² | 138.0 | 80 | 120 |
| 0.22 mm² | 85.0 | 100 | 150 |
| 0.25 mm² | 77.8 | 100 | 150 |
| 0.34 mm² | 56.0 | 100 | 150 |
| 0.50 mm² | 39.0 | 110 | 170 |
| 0.75 mm² | 26.0 | 110 | 170 |
| 1.00 mm² | 19.5 | 120 | 180 |
| 1.50 mm² | 13.3 | 120 | 180 |
