Microscope Set 400x

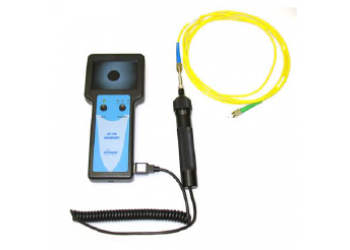

The OFT-700 fiber end face inspector is designed for ferrule end face inspection with excellent performance and convenient operability. It uses 220 k pixels of TFT sharp and finely LCD, which magnifies the object by 200 to 400 times making it easier to assess the status of the fiber end face. The compact size makes it the ideal tool for connector end face inspection before and during fiber network installation. Various adapter types meet the different requirements for inspecting male fiber connectors & female fiber connectors, such as FC, SC, ST, E2000, LC, MU and TOSA/ROSA fiber end face.

It will work for 6 hours with a 12 V rechargeable battery, which is installed in the monitor. A further option is the display on the PC monitor when using the appropriate software. The SW allows the storage of the inspected connectors for later evaluation and reporting protocols.

Features:

  • Easy to use
  • Sharp picture
  • Small size, lightweight
  • PC data storage
  • Powered by built-in rechargeable battery
  • Low power consumption


Applications:

  • Fiber network installation
  • SFP, XFP, TOSA, ROSA inspection
  • Fiber instrument output inspection
  • Fiber connector end face inspection


  • Download Datasheet
