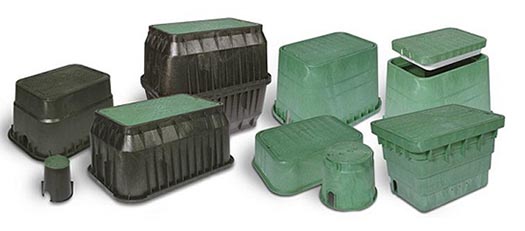

The Carson range has been used extensively for housing irrigation valve equipment and has a wide range of sizes to accommodate the requirements of the industry.
The Carson range is manufactured in a structural-foam process which results in a very strong, high quality but lightweight profile.
This world renowned brand has been used widely on golf courses throughout the USA, Europe, the Middle East and Australasia. Over 30 million boxes have been installed worldwide.
Features & Benefits
- Very strong - up to 12.5 tonnes vertical loading
- Lightweight and easy to handle
- HDPE covers (rated to 1.5T loading) ‘drop in’ - no frame required. Options for B125 access covers - Concrete Infill and Ductile Iron - are also available.
- Security options to prevent unauthorised access
- UV stability for long life and performance
- Available with or without pre-drilled holes for pipe access
Materials
The Carson range is manufactured in nitrogen-foamed High Density Polyethylene, of which up to 70% is recycled material.Benefits of HDPE
- Excellent chemical resistance to ethanol, acetone, diesel etc.
- Unaffected by sulfate ground conditions.
- Recyclable
- Robust - no breakage waste
- Completely impervious to water
- Nitrogen injection creates cellular core (CFC free)
- High strength to weight ratio
- High stiffness to weight ratio
- Easy to cut for duct entries
Product Selector
Product Size Range
| Ref | L (mm) | W (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|
| 1220-12 | 505 | 340 | 315 | 7 |
| 1220-15 | 505 | 340 | 385 | 8 |
| 1220-18 | 505 | 340 | 445 | 9 |
| 1419-12 | 395 | 265 | 310 | 5 |
| 1419-18 | 395 | 265 | 310 | 6 |
| 1324-15 | 600 | 355 | 390 | 2 |
| 1324-18 | 565 | 325 | 455 | 13 |
| 1324-26 | 565 | 325 | 660 | 17 |
| 1324-30 | 600 | 355 | 780 | 21 |
| 1324-36 | 600 | 355 | 910 | 22 |
| 1730-18B | 780 | 450 | 465 | 19 |
| 2619-18 | 600 | 450 | 455 | 11 |
Round Boxes
| Ref | Top | Base | D (mm) | Weight (Kg) |
|---|---|---|---|---|
| 708-9 | 150 | 195 | 230 | |
| 910-10 | 240 | 300 | 265 |
