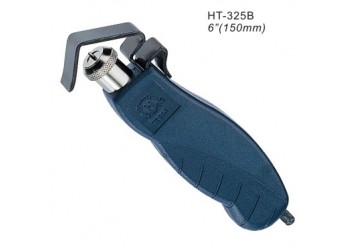

Cable Stripper Adjustable

Operation

  1. Turn the adjusting nut A to get the correct exposed length of blade for the cable and blade height.
  2. Turn adjusting screw B to get the approximate cable diameter (not critical).This diameter is indicated on cable diameter guide C.
  3. Open the tool by pushing D upwards, and insert the cable between the blade and the V-shaped holder E and release.
  4. Rotate the tool 2-3 times in a clockwise direction, to cut round the cable.
  5. Swivel the blade by pushing the shaft, and pull the stripper along the cable, to make a longitudinal cut.
  6. Use the sharp edge of the insulation lever F to lever insulation from conductor if necessary.


    7. Specification

    Item No.:HT-325B

    Dimension:150*48*23mm

    Function:Strip cables from 4.5~25 mm ( .18" - 1.0" ) diameter

    Material:Body-ABS , Blade-SK5

    Download DatasheetPDF Logo

Brand

Hanlong Tools - Taiwan
