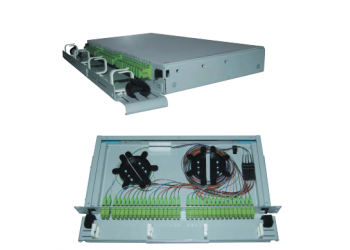

GPON Splitter Modules Splitter Module CAN-RSPLIT-10X
Overview
Ensures professional splitting and branching of fiber based on bandwidth requirements with mechanical splitters and provides professional cable management.
Highlights
- Confirms 19” or ETSI installations
- 1U (enables splitting up to 32 ports)
- Fiber trays with integrated, high-quality splitters and preterminated fiber ends
- Quick-stud system ensures easy closing /opening of the unit.
- Easy access with Telescopic rail pull-out system.
- Special bend radien for protecting the incoming and outgoing fiber from bending.
- 100% Compatible to Bellcore GR-326 standards.
- 1:2, 1:4, 2:4 , 1:8, 2:8 , 1:16, 2:16 1: 32, 2:32 splitters of all connector types can be embedded inside.
Technical Details
- Dimensions - 443 mm (W) x 22 mm (D) x 44 mm (H)
- Material - Mild Steel, 1.5 mm
- Color - Powder- Coated Median Grey NCS 2502B
- Weight - 4,5 kg (1U)
Applications
In ODFs and high density outdoor fiber applications on Carrier & Transmission level, FTTX applications, Utility Companies.
