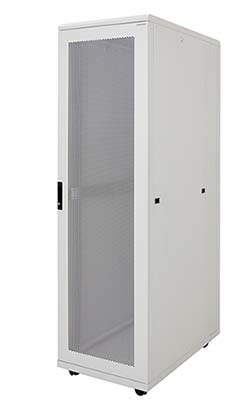

A cost effective server rack cabinet system developed for independent use and datacenter environments. inorax-ST server rack cabinet system is designed and engineered for demanding datacenter environments. It is designed to house all servers manufactured by major brands. To achieve optimum versatility within the server rack, users can set multiple depths throughout the cabinet by adjustable 19” mounting rails mounted on heavy duty side supports. Horizontally divided side panels provide ease of access and convenient post-installation maintenance. Optional 80% perforations on front and rear doors enable optimum airflow within the rack cabinet. Optional cable tray channels can be fitted on top of the rack provides perfect cable routing eliminating the need for raised floor systems. Flat-pack option enables savings up to 60% in the transport cost and warehouse space.
Standard Configuration:
- Perforated front and rear doors, Free Air Ratio (FAR): 67%
- Front & rear doors with swing handle Multi point-espagnolette
- Solid Side Panels with cylindrical locks and latches
- Internal top sheet with 3 cable entry and fan cut-outs
- 2 Pairs of depth adjustable heavy duty 19” Mounting Rails
- 2 Pairs of Adjustable Feet
- Color RAL 7035 or RAL 9005
- RoHS compliant, UL and Gost-R Certificated
- Bottom cover
