LS800

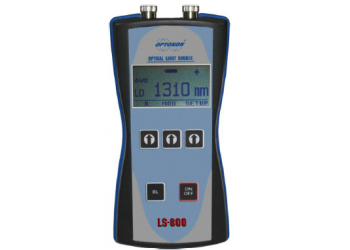

The LS-800 optical Light Source is a small size low cost item which fulfils all necessary technical field equipment requirements. Available in seven working wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm and a visible 650 nm laser source. The modulation and AWD (Auto Wavelength Detection) functions are available when interacting with the PM-800 Power meter. The rechargeable battery ensures long term working with a minimum life time of 5 years. Batteries can be charged via a USB port or external AC/DC adaptor. The microprocessor controlled charging process ensures optimal battery status and extended operation time. The changeable connector/adaptor design allows the simple exchange of optical PC or APC connectors (FC, SC or ST) and easy cleaning of the output connector ferrule after removing the connector adaptor. LC/PC and LC/APC are also available.

Features:

  • Small size, light weight
  • Modulation CW, 270 Hz, 1 kHz, 2 kHz
  • AWD function (Auto Wavelength Detection)
  • Changeable output connectors
  • Battery status indicator
  • Up to 7 light source combinations
  • Premium type – high power source
  • Powered by 3 AA type batteries
  • Battery charging via USB port, μP controlled
  • 10 min Auto Off

  • Download Datasheet PDF Logo
