RAILduct™ is an HDPE moulded cable trough system. Weighing under 15kg but capable of of taking loads imparted by vehicular traffic, RAILduct™ offers significant advantages in health and safety, speed of installation and flexibility.
Most importantly, laying RAILduct™ is typically 5 times faster than traditional concrete units, reducing the total cost of installation.
1 metre long sections are connected using the unique Twist and Lock jointing mechanism which allows a small amount of movement to follow gentle curves in the track.
RAILduct™ has been installed in many rail applications throughout the world and in different extremes of temperatures. It has also been adapted for projects in power and highways applications.
Features & Benefits
- Lightweight
Faster to install than concrete alternatives as the complete units can be lifted into place by one person
Easier to handle on site
Reduced health and safety issues - Strong, structural design
Robust during the installation process and in service - Can be hinged and locked on both sides
Covers can be opened where convenient to the operator - Base embeds in ballast
The unit is secured into the surrounding material due to the tapered base, meaning units are not displaced by the velocity of passing trains - High UV Stability
Longer life due to high UV rating - Tamper proof lock and keys
Units can be secured against threat of vandalism or theft of cables. Specialist security bolts can be provided on request - Can be divided
Multiple services can be contained in one unit, meaning that only trough units do not have run side-by-side
Download Product Brochure
Available Sizes

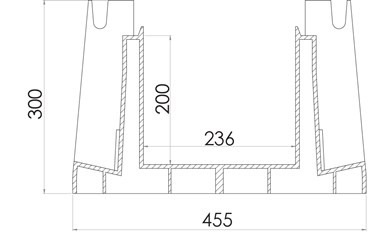

Section Profile
Product ProfileWeight: 9.9 kg (body), 4.3 kg (cover), 14.2 kg (total)
Length: 1020 mm
Material: High Density Polyethylene
