MM RAILduct™ is an GRP moulded cable trough system. Weighing under 10kg but capable of of taking loads imparted by vehicular traffic, MM RAILduct™ offers significant advantages in health and safety, speed of installation and flexibility.
Most importantly, laying MM RAILduct™ is typically 5 times faster than traditional concrete units, reducing the total cost of installation.
1 metre long sections are connected together using jointing pegs which allows 1-3° of movement possible to follow gentle curves in the track.
MM RAILduct™ has been installed in many rail applications throughout the world and in different extremes of temperatures. It has also been adapted for projects in power and highways applications.
Features & Benefits
- Lightweight
Faster to install than concrete alternatives as the complete units can be lifted into place by one person
Easier to handle on site
Reduced health and safety issues - Strong, structural design
Robust during the installation process and in service - Can be hinged and locked on both sides
Covers can be opened where convenient to the operator - Base embeds in ballast
The unit is secured into the surrounding material with feet on the side of the unit. - Fire-retardant
MM RAILduct™ won't catch fire and has low smoke properties. - Tamper proof lock and keys
Units can be secured against threat of vandalism or theft of cables. Specialist security bolts can be provided on request
Download Product Brochure
![PDF Logo](img/pdf-logo.png)
Available Sizes

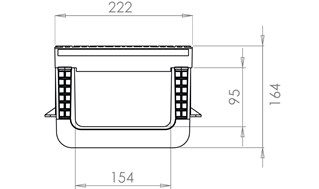

Section Profile
![](img/mm-railduct-cable-trough-section-profile.jpg)
Product Profile
Weight: 4.9 kg (body), 3.6 kg (cover), 8.5 kg (total)
Length: 1000 mm
Material: Glass Reinforced Polyester Resin
