MULTIduct™ is a multiple duct system, used for constructing under track or road crossings (UTX/URX), bridge crossings and linear routes.
Duct banks are built by connecting nominal 1 metre long sections, either by a steel clip or a push-fit system. There is also a range of accessories that offer flexibility in construction.
MULTIduct™ is manufactured from Nitrogen foamed-High Density Polyethylene, which offers high strength-to-weight properties, resulting in a product that has high crush resistance but can be lifted by a single person (all parts are below 25kg).
Features & Benefits
- Strong
MULTIduct™ has a high crush strength making it more robust with no breakages. The high strength enables it to be buried at a much shallower depth compared to conventional ducting. - Environmental
HDPE material consists of 70% recycled content and is completely recyclable at the end of its life. - Light Weight
All MULTIduct™ parts are under 25 kg this makes them easier to handle, install on site, transport and reduces health and safety issues. - Fast Installation
Rapid installation for every application resulting in more work completed during track possessions or road closures. - Flexible
A full range of accessories to overcome bends, break out of runs and interface with standard ducting is available. MULTIduct™ can also be cut onsite for termination. - Economical
MULTduct™ can be installed with less excavation needed due to shallower burial, no special plat required for lifting and no concrete surround, specialist backfill or spacers required. - Superior
MULTIduct™ is manufactured to ISO 9001 and ISO 14001

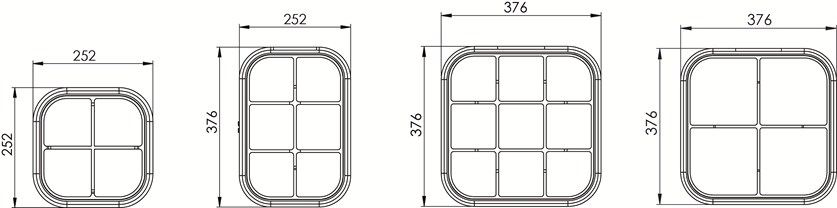

Product Sizes:
| Product Ref: | Lay Length (mm) | X (mm) | Y (mm) | Ducting Space (mm) |
|---|---|---|---|---|
| 4 Way | 1065 | 252 | 252 | 110 |
| 4 Way XL | 1065 | 376 | 376 | 160 |
| 6 Way | 1065 | 358 | 252 | 110 |
| 9 Way | 1065 | 376 | 376 | 110 |
