MULTIduct™ Micro is a multiple duct bank system used or constructing under road crossings, bridge crossings and linear routes.
Duct banks are built by connecting 500mm sections by push-fit system. The system is available in 4 and 6 way profiles and each duct space offers a space of approximately 50mm x 50mm for cables.
MULTIduct™ Micro is manufactured from High Density Polyethylene (HDPE) which offers high strength-to-weight properties, resulting in a product that has high crush resistance but falls under 3kg per unit in weight.
Lightweight, strong, flexible duct system for constructing UTX/URX, bridge crossing & linear routes.
Features & Benefits
- Strong
MULTIduct™ has a high crush strength making it more robust with no breakages. The high strength enables it to be buried at a much shallower depth compared to conventional ducting. - Environmental
HDPE material consists of 70% recycled content and is completely recyclable at the end of its life. - Light Weight
All MULTIduct™ Micro parts are under 3kg this makes them easier to handle, install on site, transport and reduces health and safety issues. - Fast Installation
Rapid installation for every application resulting in more work completed during track possessions or road closures. - Economical
MULTduct™ Micro can be installed with less excavation needed due to shallower burial, no special plat required for lifting and no concrete surround, specialist backfill or spacers required. - Superior
MULTIduct™ Micro is manufactured to ISO 9001 and ISO 14001
Download Product Brochure
Size Range:

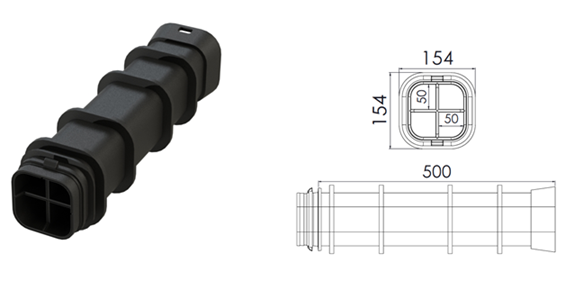

MULTIduct™ Micro (4 way)

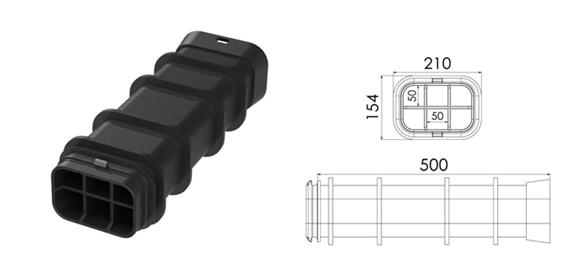

MULTIduct™ Micro (6 way)
